| Parameter | Specification |
|---|---|

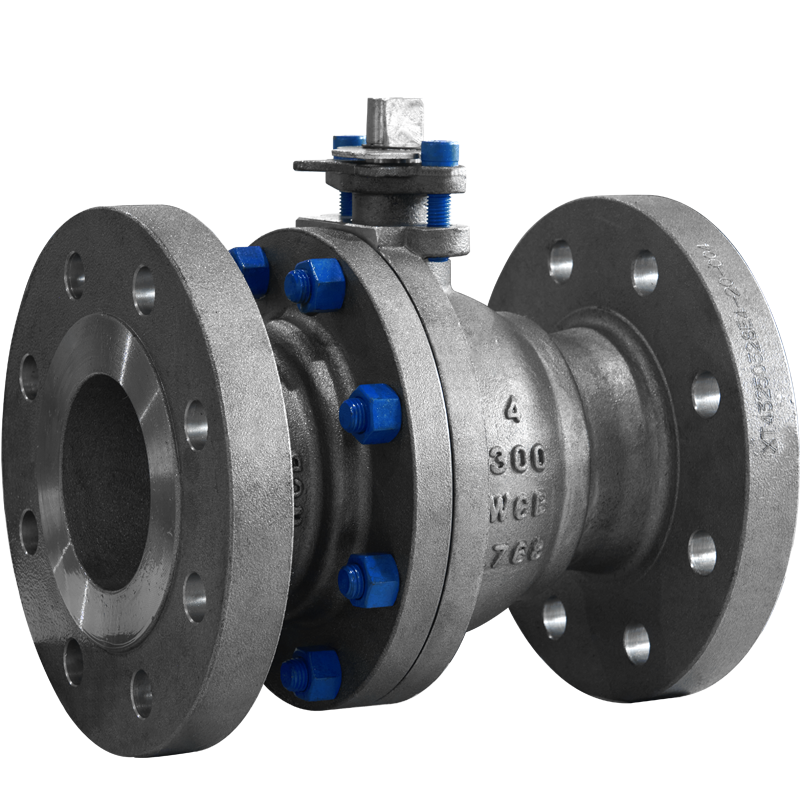

| Design | Two-Piece Bolted Body |
| Size Range | 1/2" – 12" (DN15–DN300) |
| Pressure Rating | Class 150, 300, 600, 900, 1500, 2500 |
| Design Standard | API 608, API 6D, ASME B16.34 |
| Face-to-Face | ASME B16.10 |
| Flange Standard | ASME B16.5, EN 1092-1 |
| Thread Standard | NPT (ASME B1.20.1), BSPT, BSPP |
| Butt Weld Ends | ASME B16.25 |
| Socket Weld Ends | ASME B16.11 |
| Fire Safe Design | API 607 / API 6FA (Optional) |
| Anti-Static Device | Standard / Optional |
| Blowout-Proof Stem | Yes |
| Valve Type | Floating / Trunnion |
| Port Type | Full Port / Reduced Port |
| Seat Material | PTFE, RPTFE, PEEK, Devlon, Metal Seat |
| Body Material | ASTM A216 WCB, A105N, ASTM A351 CF8, CF8M, CF3M, Duplex SS |
| Ball Material | SS304, SS316, Duplex Stainless Steel |
| Stem Material | SS410, SS304, SS316, 17-4PH |
| Operation | Lever, Gear Operator, Pneumatic Actuator, Electric Actuator |
| Temperature Range | -160 ℃ to 425 ℃ (Depends on Seat Material) |
| Leakage Standard | API 598, ISO 5208 |
| Testing Standard | API 598, API 6D |
| Applicable Medium | Water, Oil, Gas, Steam, Chemical, LNG, Corrosive Fluids |
Two-piece bolted body design enables simplified maintenance and cost-effective repair.
Bidirectional sealing system ensures bubble-tight shut-off in both flow directions.
Quarter-turn operation (90°) provides fast and reliable on/off control with low operating torque.
Multiple end connections available,including threaded (NPT/BSP), flanged (RF/FF), and welded ends.
Locking handle option prevents accidental operation in critical industrial environments.
Excellent sealing performance with PTFE, RPTFE, or PPL seats ensures long-term leakage control.
Corrosion-resistant construction available in SS304, SS316, WCB, and duplex stainless steel.
Low operating torque design reduces actuator sizing and manual effort.
Wide pressure range coverage, suitable for PN16–PN40 and Class 150–300 applications.
Long service life design optimized for repeated operation in oil & gas, petrochemical, chemical, and water treatment systems.
