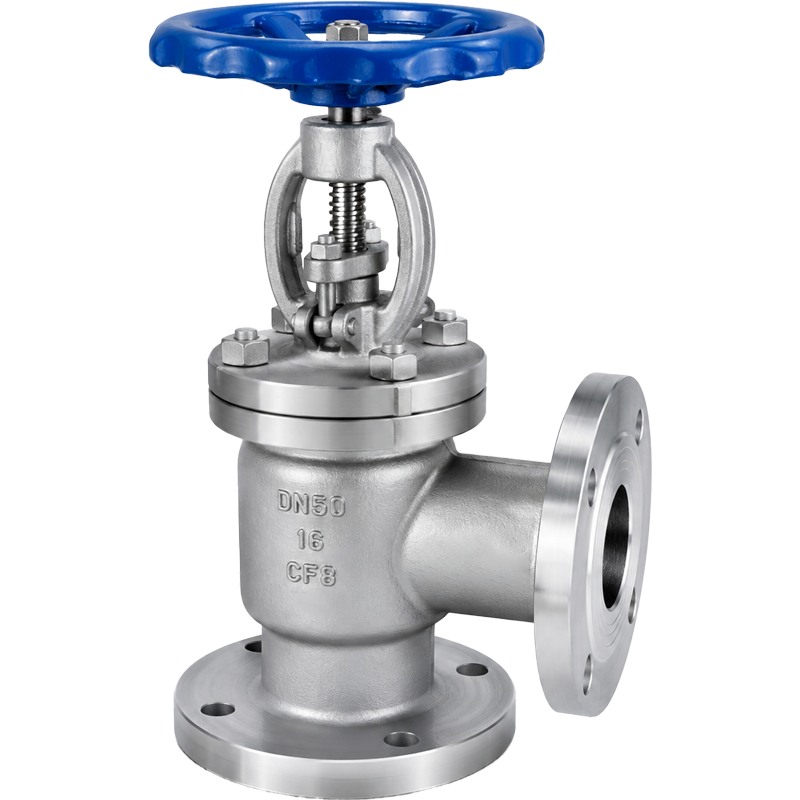

Integrated 90° Flow Path Design
Combines a globe valve and a 90-degree elbow into one unit, eliminating the need for an additional pipe fitting and reducing installation complexity.
Reduced Pipeline Space Requirements
The angle body design enables compact piping layouts, making it ideal for installations with limited space or directional changes.
Lower Pressure Loss Than Elbow + Globe Valve Assemblies
By integrating the change in flow direction within the valve body, the Angle Globe Valve minimizes turbulence and pressure drop compared with separate elbow and globe valve combinations.
Ideal for Bottom Drain and Blowdown Service
Commonly used for boiler blowdown, drain lines, sampling systems, and vessel discharge applications where fluid must change direction while maintaining precise shut-off.
Efficient Drainage Performance
The angled outlet promotes smoother media discharge, helping to reduce fluid retention and improve drainage efficiency after shutdown.
