| Parameter | Specification |
|---|---|
| Design Type | Floating Ball / Trunnion Mounted Ball Valve |
| Size Range | 1/2" – 24" (DN15–DN600) |
| Pressure Rating | Class 150, 300, 600 (up to 2500 on request) |
| Temperature Range | -196°C to +80°C (LNG / LPG service) |
| Body Material | ASTM A351 CF8 / CF8M, A182 F304 / F316, LF2 (low temperature steel) |
| Ball & Stem Material | SS304 / SS316 / Hardened stainless steel |
| Seat Material | PTFE / RPTFE / PCTFE / Nylon (cryogenic grade) |
| Design Standard | API 6D, ISO 17292, BS 6364 (Cryogenic service) |
| End Connection | RF / RTJ Flanged, Butt Weld (BW), Socket Weld (SW) |
| Bonnet Type | Extended bonnet for cryogenic insulation |
| Operation | Lever, Gear, Electric actuator, Pneumatic actuator |
| Leakage Standard | ISO 5208 Rate A (zero leakage) |
| Testing | Shell test, low-temperature impact test, cryogenic gas testing |
| Application | LNG, LPG, liquid oxygen (LOX), liquid nitrogen (LIN), industrial gas systems |
Reliable Cryogenic Performance
Engineered for extreme low-temperature service down to -196°C, ensuring stable operation in LNG, LPG, LOX and other liquefied gas systems.

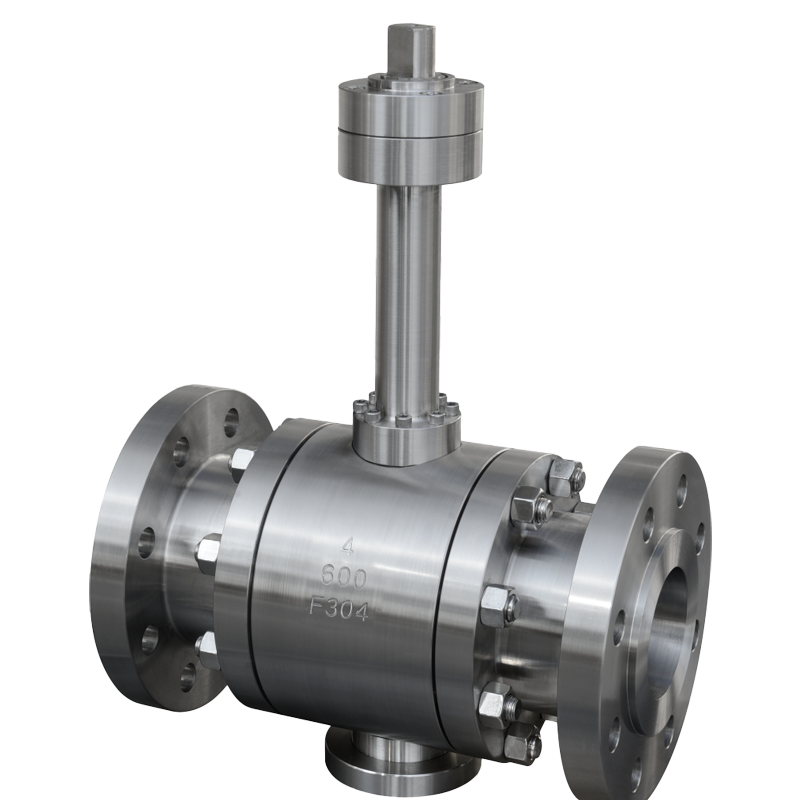

Extended Bonnet Design
Reduces heat transfer to the sealing system, protecting stem packing and ensuring safe, long-term cryogenic operation.
Bubble-Tight Shut-Off
Precision-machined ball and high-performance seats provide zero-leakage sealing under both high pressure and ultra-low temperature conditions.
Low Operating Torque
Optimized ball-seat contact reduces friction, enabling smooth quarter-turn operation even after thermal cycling.
Durable Low-Temperature Materials
Selected carbon steel and stainless steel materials maintain toughness and impact resistance in cryogenic environments.
High Reliability in Critical Service
Widely used in LNG terminals, storage tanks, transport pipelines, and industrial gas processing systems where failure is not an option.
