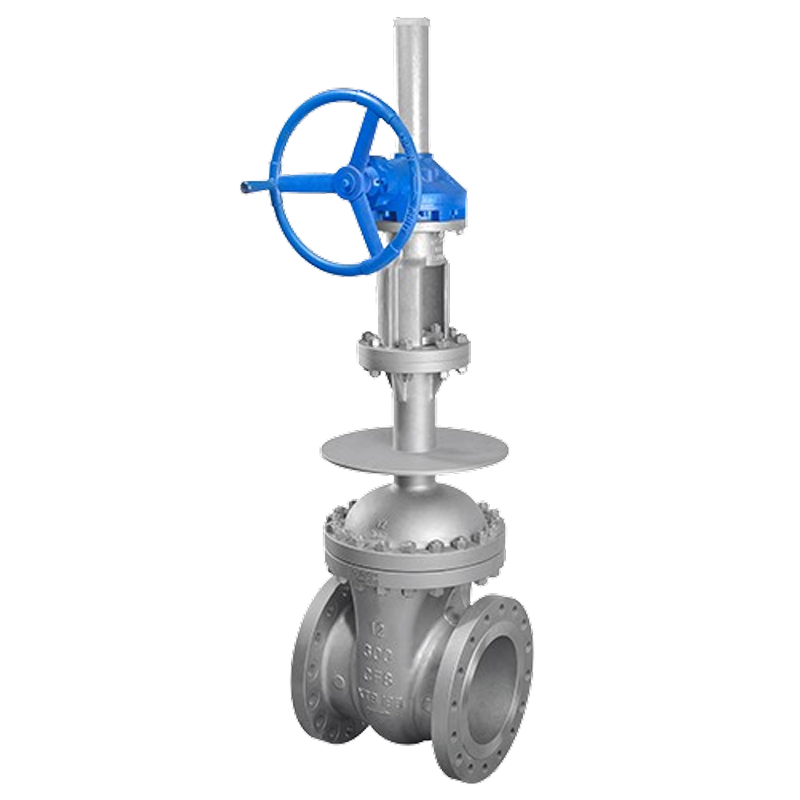

Cryogenic Gate Valve

Name: Cryogenic Gate Valve
Brand: SAVVY IMPORT AND EXPORT CO., LTD.

Cryogenic Gate Valve is engineered for reliable shut-off service in ultra-low temperature applications involving LNG, LPG, liquid oxygen, liquid nitrogen, liquid hydrogen, and other cryogenic media. Designed with an extended bonnet to protect stem sealing from extreme cold, it ensures long-term sealing integrity, low operating torque, and dependable performance. It is widely used in LNG terminals, air separation plants, petrochemical facilities, and industrial gas processing systems where safety, durability, and leak-tight performance are essential.

Specification of Cryogenic Gate Valve

Parameter	Specification
Size Range	1/2"–48" (DN15–DN1200)
Pressure Rating	Class 150–2500 / PN16–PN420
Design	Bolted Bonnet / Pressure Seal Bonnet (Optional)
Bonnet Type	Extended Cryogenic Bonnet
Body Material	ASTM A351 CF8, CF8M, CF3, CF3M, LCB, LC3, LF2, Stainless Steel, Duplex Stainless Steel
Trim Material	Stainless Steel, 13Cr, F6a, SS304, SS316, Stellite Overlay (Optional)
Seat Type	Metal Seat
Stem Type	Rising Stem
Operation	Handwheel, Gear Operator, Electric Actuator, Pneumatic Actuator
End Connection	Flanged, Butt Weld, Socket Weld
Face-to-Face	ASME B16.10, EN 558
Flange Standard	ASME B16.5, ASME B16.47, EN 1092-1
Butt Weld Standard	ASME B16.25
Inspection & Testing	API 598, BS 6364, ISO 5208
Fire Safe Design	API 607 / API 6FA (Optional)
Fugitive Emission	ISO 15848 / API 624 (Optional)
Temperature Range	-196°C to +200°C (-320°F to +392°F)
Applicable Media	LNG, Liquid Nitrogen (LN₂), Liquid Oxygen (LOX), Liquid Argon (LAr), Liquid Hydrogen (LH₂), Ethylene, Industrial Gases
Leakage Class	ISO 5208 Rate A / API 598
Standards	API 600, API 602, BS 6364, ASME B16.34, ISO 17292 (where applicable)
Applications	LNG Plants, Air Separation Units (ASU), Petrochemical, Chemical Processing, Power Plants, Industrial Gas, Storage & Transportation

Features of Cryogenic Gate Valve

Extended Bonnet Design for Cryogenic ServiceFeatures an extended bonnet that thermally isolates the stem packing from cryogenic temperatures, preventing seal freezing and ensuring reliable packing per...

Extended Bonnet Design for Cryogenic Service

Features an extended bonnet that thermally isolates the stem packing from cryogenic temperatures, preventing seal freezing and ensuring reliable packing performance.

Designed for Ultra-Low Temperature Applications

Engineered to operate safely in temperatures down to -196°C (-320°F), making it ideal for LNG, liquid nitrogen, liquid oxygen, liquid hydrogen, and other cryogenic media.

Self-Draining Bonnet Cavity

Bonnet geometry is designed to prevent cryogenic liquid accumulation, reducing the risk of pressure build-up and freeze-related damage.

Cryogenic-Compatible Packing System

Special low-temperature packing materials minimize leakage while maintaining sealing integrity through repeated thermal cycling.

Low-Temperature Toughness Materials

Manufactured from austenitic stainless steel or other cryogenic-rated alloys that retain excellent impact strength and ductility at extremely low temperatures.

Reduced Thermal Stress During Temperature Cycling

Optimized body, bonnet, and wedge design accommodates rapid cooling and warming cycles, minimizing deformation and extending valve service life.

Suitable for High-Purity Cryogenic Media

Internal surfaces can be cleaned and prepared for oxygen or high-purity gas service, helping prevent contamination in critical applications.

Ideal for LNG Storage and Transportation Systems

Specifically developed for cryogenic process lines, LNG terminals, air separation units (ASU), bulk storage tanks, and industrial gas distribution networks.
