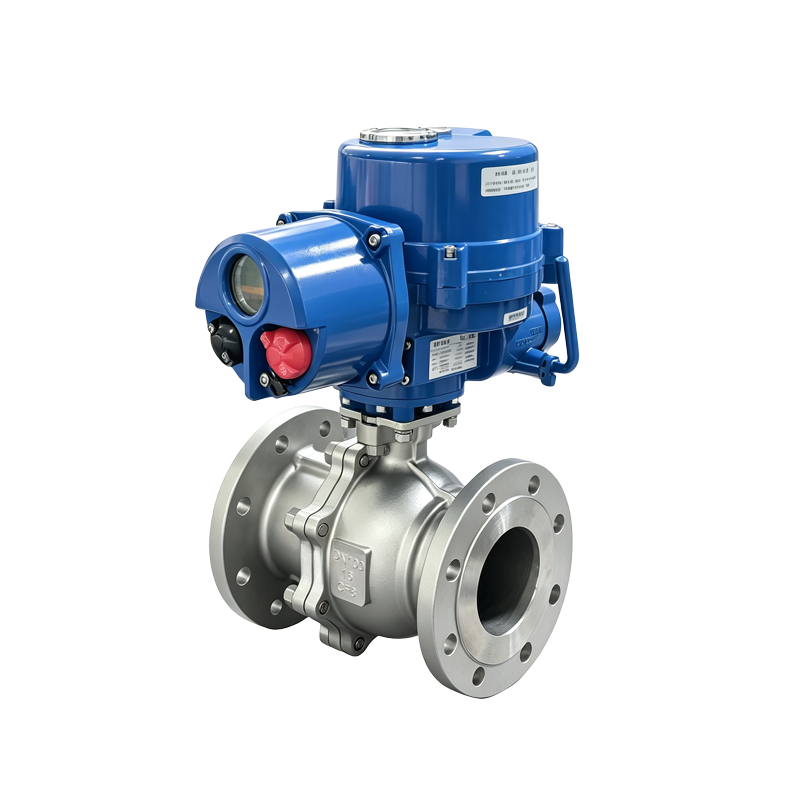

Electric Actuator Ball Valve

Specification of Electric Actuator Ball Valve

ParameterDetails
Valve DesignFloating Ball / Trunnion Mounted (Optional)
Valve SizeDN15 – DN1300 (1/2" – 52")
Pressure RatingClass 150 – 2500 (PN16 – PN420)
Body MaterialWCB, A105, CF8, CF8M, CF3, CF3M, Duplex Stainless Steel, Super Duplex, Alloy Steel
Ball MaterialSS304, SS316, Duplex SS, Hard-Coated Stainless Steel
Seat MaterialPTFE, RPTFE, PPL, PEEK, Metal Seated
Stem MaterialSS304, SS316, 17-4PH, Duplex Stainless Steel
End ConnectionFlanged, Threaded (NPT/BSP), Socket Weld, Butt Weld
Flange StandardASME B16.5, EN 1092-1, JIS, GOST
Face-to-Face StandardASME B16.10, API 6D
Design StandardAPI 6D, API 608, ASME B16.34
Fire Safe DesignAPI 607 / API 6FA (Optional)
Anti-Static DesignAvailable
Blowout-Proof StemStandard
Leakage ClassANSI/FCI 70-2 Class VI (Soft Seat)
Temperature Range-196°C to +550°C (Depends on Seat Material)
Actuator TypeOn/Off, Modulating, Intelligent Electric Actuator
Power Supply24V AC/DC, 110V AC, 220V AC, 380V AC
Enclosure ProtectionIP67, IP68 (Optional)
Explosion ProofATEX, IECEx (Optional)
Mounting StandardISO 5211
Manual OverrideAvailable
Working MediumWater, Steam, Oil, Gas, Air, Chemical Fluids
Applicable IndustriesOil & Gas, Petrochemical, Chemical, Water Treatment, Power Plant, Mining
Testing StandardAPI 598, ISO 5208


Features of Electric Actuator Ball Valve

Precise Electric AutomationProvides accurate on/off or modulating control with fast response, improving process efficiency and reducing manual intervention.Intelligent Electric Actuator OptionsAvailab...
Features of Electric Actuator Ball Valve

Precise Electric Automation

Provides accurate on/off or modulating control with fast response, improving process efficiency and reducing manual intervention.


Intelligent Electric Actuator Options

Available with digital position indication, torque protection, self-locking function, overload protection, and fault diagnostics for enhanced operational safety.


No Compressed Air Required

Operates solely on electrical power, reducing installation costs and making it suitable for facilities without pneumatic systems.




Manual Override for Emergency Use

Equipped with a manual override mechanism, allowing valve operation during power failures or maintenance.


Low Maintenance & Long Service Life

Electric actuators require minimal routine maintenance and provide consistent, repeatable operation over long service cycles.


Broad Industrial Applications

Suitable for oil & gas, petrochemical, chemical processing, water treatment, power generation, pharmaceutical, and general industrial automation systems.


Features of Electric Actuator Ball Valve
