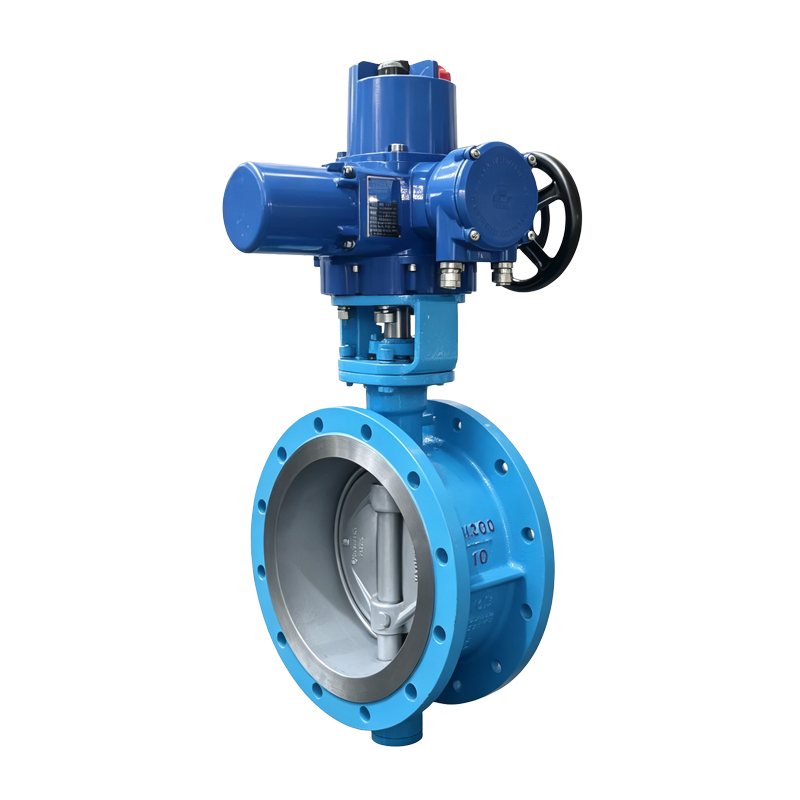

| Parameter | Details |
|---|---|
| Valve Type | Wafer / Lug / Double Flanged |
| Nominal Size | DN40 – DN1500 (1½" – 60") |
| Pressure Rating | Class 150 – 600 (PN10 – PN100) |
| Body Material | Ductile Iron, Carbon Steel, Stainless Steel, Aluminum Bronze |
| Disc Material | Stainless Steel, Ductile Iron (Nylon Coated), Aluminum Bronze, Duplex Stainless Steel |
| Seat Material | EPDM, NBR, PTFE, Viton, Metal Seat |
| Stem Material | SS410, SS420, SS431, SS304, SS316 |
| End Connection | Wafer, Lug, Flanged |
| Actuator Type | Quarter-Turn Electric Actuator |
| Control Mode | On/Off, Modulating, Intelligent Control |
| Power Supply | 24V AC/DC, 110V AC, 220V AC, 380V AC |
| Output Signal | 4–20mA, 0–10V, 1–5V (Optional) |
| Protection Class | IP67 (Standard), IP68 (Optional) |
| Operating Temperature | -20°C to +180°C (Depending on Seat Material) |
| Manual Override | Available |
| Mounting Standard | ISO 5211 |
| Leakage Rate | ISO 5208 / API 598 |
| Design Standard | API 609, EN 593, MSS SP-67 |
| Face-to-Face | API 609, EN 558 |
| Flange Standard | ASME B16.5, EN 1092-1, JIS, DIN |
| Inspection & Testing | API 598, ISO 5208 |
| Applications | Water Treatment, Chemical Processing, Oil & Gas, Power Plant, Food & Beverage |
Automated Remote Operation
Equipped with an electric actuator, the valve enables remote opening, closing, and precise flow regulation, reducing manual intervention and improving system automation efficiency.
Low Torque Quarter-Turn Design
The butterfly valve structure provides a compact quarter-turn operation with reduced torque requirements, resulting in smaller actuator size and lower operating costs.
Fast Response & Reliable Performance
Electric actuators deliver quick response times and stable operation, ensuring reliable valve performance in frequently cycled applications.
Compact and Space-Saving Construction
Compared with traditional actuated gate or globe valves, the butterfly valve design offers a shorter face-to-face dimension and lighter weight, simplifying installation and maintenance.
