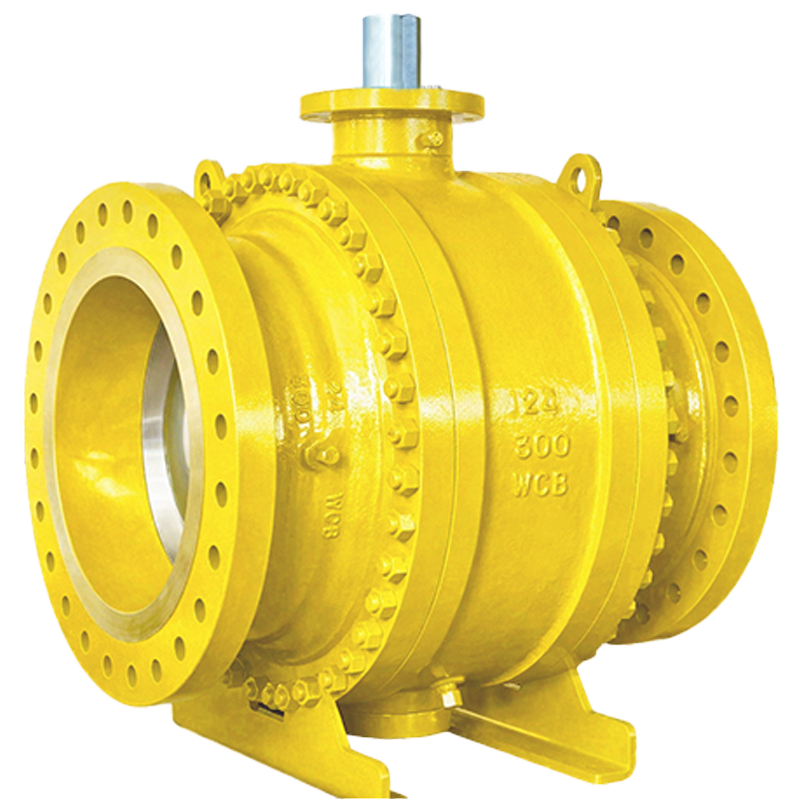

Full Bore Ball Valve

Full Bore Ball Valve features a full-port design with an internal bore equal to the pipeline diameter, ensuring minimal pressure drop and unrestricted flow passage. It effectively reduces flow resistance and minimizes the risk of media blockage, making it ideal for pipeline pigging applications. The valve is equipped with PTFE/RPTFE seat sealing for reliable bi-directional zero leakage performance. An anti-blowout stem and anti-static device enhance operational safety. ISO 5211 mounting pad allows easy integration with pneumatic or electric actuators. Designed in compliance with API 6D and API 608 standards, it is widely used in oil & gas, petrochemical, and industrial pipeline systems.

Specification of Full Bore Ball Valve

Specification Item	Details
Design Type	Full Port / Full Bore Ball Valve
Size Range	1/2" – 48" (DN15 – DN1200)
Pressure Rating	Class 150 / 300 / 600 / 900 / 1500 / 2500
Body Material	Carbon Steel (WCB), Stainless Steel (CF8 / CF8M), Alloy Steel (A105 / LF2 optional)
Ball Type	Solid / Hollow Ball
Seat Material	PTFE / RPTFE / PEEK / Metal Seat (optional)
End Connection	Flanged (RF/RTJ), Butt Weld (BW), Socket Weld (SW), Threaded (NPT/BSP)
Design Standard	API 6D, API 608, ASME B16.34
Face to Face	ASME B16.10
Testing Standard	API 598 / ISO 5208
Operation	Lever, Gear, Pneumatic Actuator, Electric Actuator
Mounting Standard	ISO 5211 direct mounting pad
Temperature Range	-196°C to +450°C (depending on material & seat type)
Leakage Class	API 6D / ANSI Class VI (soft seat)
Applications	Oil & Gas, Petrochemical, Refinery, Pipeline Transmission, Power Plant, Industrial Process Systems

Features of Full Bore Ball Valve

Full Port Flow DesignFull bore construction provides an unobstructed flow path equal to the pipeline diameter, minimizing pressure loss and ensuring efficient fluid transmission.Suitable for Pigging

Full Port Flow Design

Full bore construction provides an unobstructed flow path equal to the pipeline diameter, minimizing pressure loss and ensuring efficient fluid transmission.

Suitable for Pigging Operations

Straight-through flow geometry allows smooth passage of pipeline cleaning and inspection tools, making it suitable for transmission pipeline service.

Robust Pressure Boundary Design

Engineered for high-pressure service conditions in accordance with API 6D and API 608 requirements, suitable for critical isolation duties.

Stem Safety & Anti-Static Protection

Anti-blowout stem construction and integrated anti-static devices enhance operational safety in flammable and high-risk media applications.

Actuation Compatibility

ISO 5211 mounting interface enables direct installation of pneumatic, electric, or hydraulic actuators for automated process control.

Operational Efficiency & Service Life

Low-friction sealing system reduces operating torque and wear, supporting extended service intervals in continuous industrial operation.

Industrial Application Scope

Commonly applied in oil & gas transmission, refining, petrochemical processing, and high-demand industrial pipeline systems.
