| Parameter | Value |
|---|---|
| Valve Type | Wafer Type, Lug Type, Flanged Type |
| Size Range | 2"–48" (DN50–DN1200) |
| Pressure Rating | PN10, PN16, Class 150 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel (CF8, CF8M, WCB), Duplex Stainless Steel |
| Gate Material | Stainless Steel 304, Stainless Steel 316, Duplex Stainless Steel |
| Seat Material | NBR, EPDM, PTFE, Metal Seat |
| Stem Material | Stainless Steel 304/316 |
| Connection Type | Wafer, Lug, Flanged |
| End Standard | EN 1092-1, ASME B16.5, JIS B2220 |
| Face-to-Face Standard | MSS SP-81, EN 558 Series 20 |
| Design Standard | MSS SP-81 |
| Inspection & Testing | MSS SP-81, API 598 |
| Temperature Range | –29 °C ~ +650 °C (Depending on Seat Material) |
| Flow Direction | Uni-directional or Bi-directional |
| Leakage Class | Bubble-tight Resilient Seat / Metal Seat Available |
| Operation | Handwheel, Bevel Gear, Chain Wheel, Pneumatic Actuator, Electric Actuator, Hydraulic Actuator |
| Applicable Media | Slurry, Wastewater, Sewage, Pulp, Paper Stock, Powder, Ash, Bulk Solids, Viscous Fluids |
| Applications | Mining, Wastewater Treatment, Pulp & Paper, Chemical Processing, Cement, Power Plant, Sugar Industry, Food Processing |

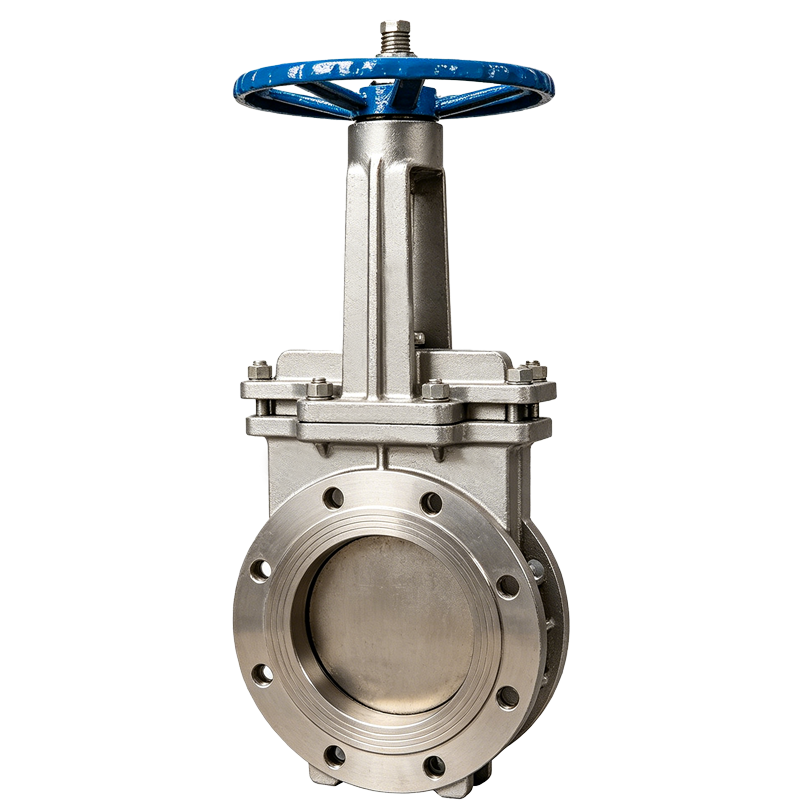

Sharp Knife-Edge Gate Design
The beveled blade effectively cuts through slurry, pulp, fibers, powders, and viscous media, ensuring reliable shutoff where conventional gate valves may clog.
Excellent for Solid-Laden Media
Specifically designed to handle fluids containing suspended solids, abrasive particles, and fibrous materials with minimal blockage.
Self-Cleaning Gate Action
The gate wipes the seat during operation, reducing material buildup and improving long-term sealing performance.
Low Operating Torque
The thin gate profile minimizes friction, allowing smooth operation with lower actuator or manual operating force.
Ideal for Abrasive Applications
Designed to withstand demanding conditions in mining, wastewater treatment, pulp & paper, power generation, and bulk material handling.
Easy Maintenance
Simple internal structure with fewer moving parts allows quick seat replacement and reduced maintenance downtime.
