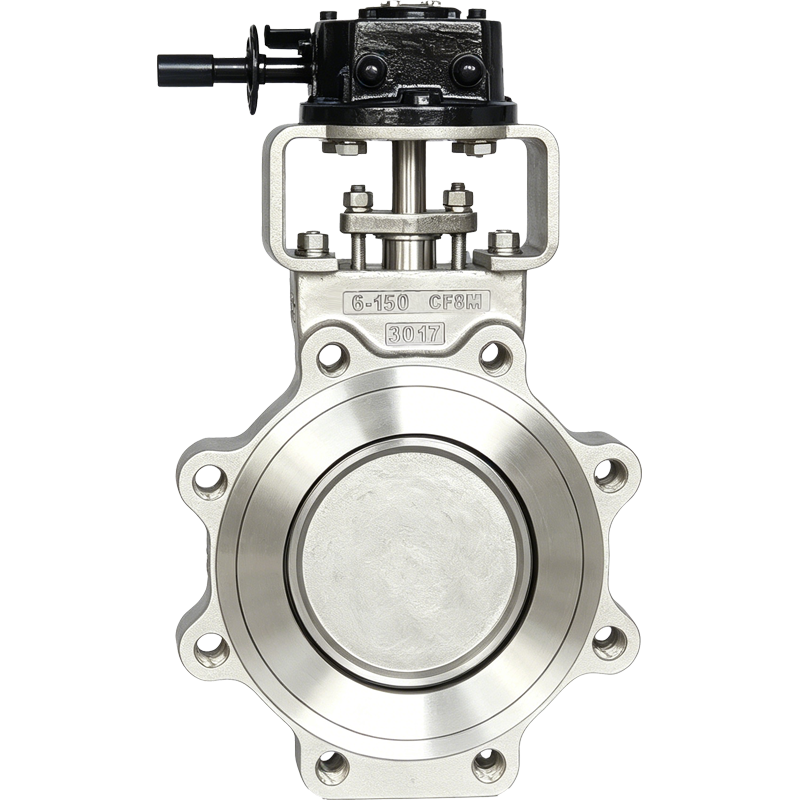

Lug Butterfly Valve

Name: Lug Butterfly Valve
Brand: SAVVY IMPORT AND EXPORT CO., LTD.

Lug Butterfly Valve is a reliable quarter-turn isolation valve designed for industrial piping systems requiring secure shut-off and easy maintenance. Featuring a lug-style body design with threaded inserts, it allows installation between flanges and supports dead-end service applications. Manufactured with high-performance materials and precision machining, this butterfly valve provides excellent sealing performance, low operating torque, and long service life.

Specification of Lug Butterfly Valve

Parameter	Details
Design Standard	API 609, MSS SP-67, EN 593
Pressure Rating	Class 150–300, PN10–PN25
Size Range	2" – 24" (DN50 – DN600)
Body Type	Lug Type, Wafer Lug Pattern
Body Material	Carbon Steel, Stainless Steel, Ductile Iron, Cast Iron, Duplex Stainless Steel
Disc Material	CF8M, CF8, Duplex Stainless Steel, Aluminum Bronze, Carbon Steel with Coating
Seat Material	EPDM, NBR, PTFE, FKM, Metal Seat
Stem Material	Stainless Steel 410, 304, 316
Connection Type	Lug Flanged Connection (ASME B16.5 / EN1092)
Operation	Manual Lever, Gear Operator, Pneumatic Actuator, Electric Actuator
Design Feature	Double Flanged Lug Design, Bi-directional Shut-off, Dead-End Service Capability
Sealing Performance	Bubble-tight Shut-off, Low Leakage Design
Temperature Range	-29°C to +180°C (Depending on Materials)
Face-to-Face Dimension	API 609 / ISO 5752
Top Flange Standard	ISO 5211 Actuator Mounting Pad
Inspection & Testing	API 598 / EN 12266
Applicable Medium	Water, Oil, Gas, Steam, Chemicals, Air, Corrosive Media
Applications	Oil & Gas, Chemical, Petrochemical, Power Generation, Water Treatment

Features of Lug Butterfly Valve

Dead-End Service CapabilityLug design with threaded inserts allows the valve to be installed at the end of a pipeline or used as a terminal valve, providing reliable isolation without the need for add...

Dead-End Service Capability

Lug design with threaded inserts allows the valve to be installed at the end of a pipeline or used as a terminal valve, providing reliable isolation without the need for additional flange supports.

Independent Flange Mounting Design

Each lug hole is individually threaded, enabling easier installation and removal while maintaining secure alignment between pipeline flanges.

Suitable for End-of-Line Applications

Unlike wafer butterfly valves, Lug Butterfly Valves can withstand full pressure from one side when the downstream pipeline or equipment is removed, making them ideal for maintenance operations.

Enhanced Piping System Stability

The lug-style connection distributes bolt load evenly around the valve body, reducing installation stress and improving long-term sealing reliability.

Easy Maintenance & Replacement

The lug configuration allows one side of the pipeline to be disconnected while keeping the opposite side secured, minimizing downtime during valve servicing.

Low Torque Operation

Precision-machined disc and optimized sealing design reduce friction between disc and seat, resulting in lower operating torque and smaller actuator requirements.

Excellent Shut-Off Performance

Resilient seat or metal seat options provide bubble-tight sealing performance for reliable isolation in water, chemical, oil, and gas applications.

Compact & Cost-Effective Alternative

Compared with traditional gate or globe valves, Lug Butterfly Valve offers a lighter weight, smaller footprint, and lower installation cost while maintaining dependable flow control performance.
