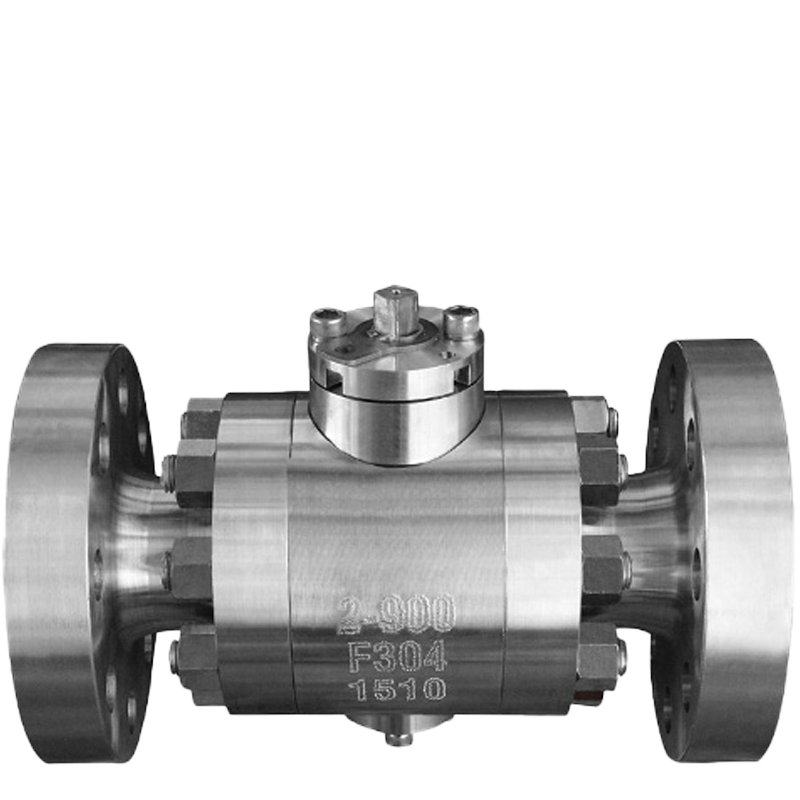

Metal Seated Ball Valve

Name: Metal Seated Ball Valve
Brand: SAVVY IMPORT AND EXPORT CO., LTD.

Metal Seated Ball Valve is designed for severe service applications where high temperature, abrasion, and corrosion resistance are required. Featuring precision-machined metal-to-metal sealing surfaces, it ensures reliable shutoff performance under extreme pressure and temperature conditions. The valve body is typically manufactured from carbon steel or stainless steel, with hard-coated seating surfaces such as Stellite or tungsten carbide for extended service life. It is widely used in oil & gas, petrochemical, power generation, and slurry handling systems. Key advantages include high wear resistance, low leakage rate, fire-safe performance, and suitability for harsh media, making it ideal for demanding industrial flow control applications.

Specification of Metal Seated Ball Valve

Item	Description
Valve Design	Floating Ball / Trunnion Mounted Ball Design
Size Range	2" – 48" (DN50 – DN1200)
Pressure Class	ASME Class 150 – Class 2500 (PN16 – PN420)
Body Material	Carbon Steel (WCB/WCC), Stainless Steel (CF8/CF8M/CF3M), Duplex Stainless Steel, Super Duplex, Alloy Steel
Ball & Stem Material	Stainless Steel, Duplex Stainless Steel, Alloy Materials with Hard Coating
Seat Material	Metal Seat (Stellite Overlay, Tungsten Carbide Coating, Nickel Alloy Coating)
End Connection	Flanged (RF/RTJ), Butt Weld, Socket Weld, Threaded (as applicable)
Design Standard	API 6D, ASME B16.34
Face-to-Face Standard	ASME B16.10 / API 6D
Flange Standard	ASME B16.5, ASME B16.47
Testing Standard	API 6D, API 598, ISO 5208
Fire Safe Design	API 607 / API 6FA (Optional)
Anti-Static Design	API 608 / API 6D (Optional)
Anti-Blowout Stem	Standard
Bore Type	Full Bore / Reduced Bore
Temperature Range	-196°C to +500°C (depending on material and sealing design)
Operation	Manual Handle, Gear Operator, Pneumatic Actuator, Electric Actuator, Hydraulic Actuator
Seat Leakage Class	ANSI Class V / Class VI (depending on design)
Applicable Media	Oil, Gas, Steam, Chemical Fluids, Slurry, Abrasive Media
Applications	Oil & Gas, Petrochemical, Power Generation, Mining, Chemical Processing, LNG

Features of Metal Seated Ball Valve

Excellent Abrasion & Erosion ResistanceHard-faced sealing surfaces (Stellite, Tungsten Carbide, HVOF coating) provide strong resistance against sand, slurry, and solid particles.Superior High-Temp...

Excellent Abrasion & Erosion Resistance

Hard-faced sealing surfaces (Stellite, Tungsten Carbide, HVOF coating) provide strong resistance against sand, slurry, and solid particles.

Superior High-Temperature Performance

Metal-to-metal sealing structure allows stable operation under extreme temperatures up to +600°C, suitable for steam, refinery, and thermal power systems.

Reliable Sealing Under Severe Conditions

Precision-machined ball and seat ensure tight shutoff performance even under high pressure and differential pressure environments.

Extended Service Life

Reinforced sealing design and wear-resistant coatings significantly reduce maintenance frequency and downtime in continuous operation systems.

Suitable for Harsh Media

Designed for oil, gas, steam, slurry, corrosive fluids, and high-solid-content media in critical process lines.

Low Operating Torque Design

Optimized ball-seat contact reduces friction, improving actuator efficiency and operational stability.

Wide Industrial Application Range

Widely used in oil & gas, petrochemical, mining, power generation, LNG, and chemical processing industries.
