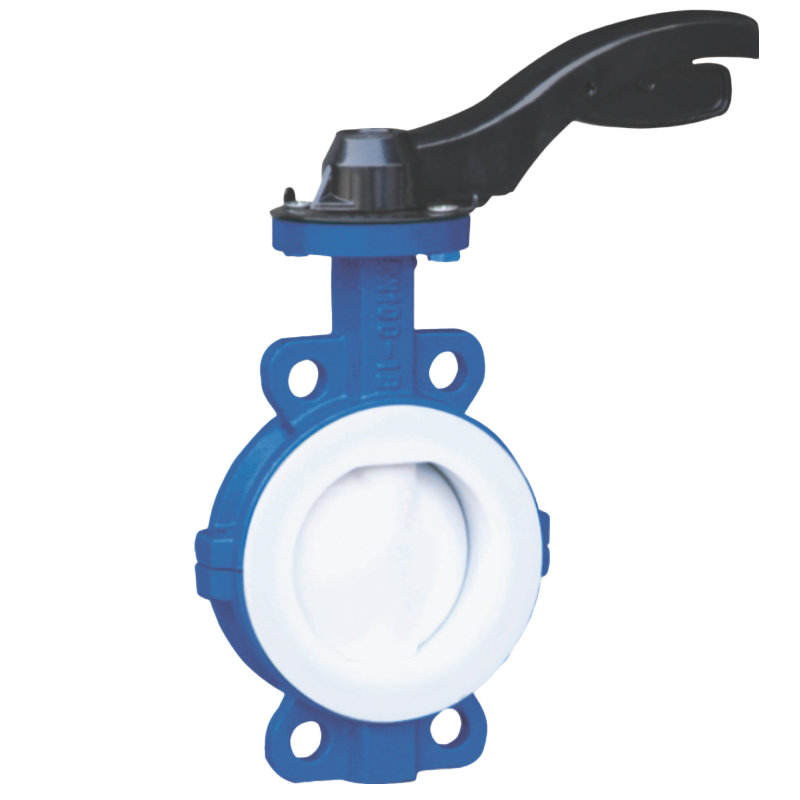

PTFE Lined Butterfly Valve

Name: PTFE Lined Butterfly Valve
Brand: SAVVY IMPORT AND EXPORT CO., LTD.

PTFE Lined Butterfly Valve is designed for reliable shut-off and flow control in highly corrosive applications. Featuring a corrosion-resistant PTFE liner and durable valve body construction, it provides excellent chemical compatibility, low friction operation, and long service life. Suitable for acids, alkalis, solvents, and aggressive media, this valve is widely used in chemical processing, pharmaceutical, water treatment, and industrial piping systems.

Specification of PTFE Lined Butterfly Valve

Parameter	Specification
Design Standard	API 609, MSS SP-67, EN 593
Pressure Rating	Class 150–300, PN10–PN25
Size Range	2" – 24" (DN50 – DN600)
Body Material	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Lining Material	PTFE, PFA, FEP (Optional)
Disc Material	Stainless Steel 316 / 316L, Hastelloy, PTFE Coated Disc (Optional)
Stem Material	Stainless Steel 304 / 316 / 316L
Seat Material	PTFE, Reinforced PTFE (RPTFE)
End Connection	Wafer, Lug, Flanged
Actuation Options	Manual Lever, Gear Operator, Pneumatic Actuator, Electric Actuator
Temperature Range	-40°C to +180°C (Depending on Lining Material)
Media Application	Acids, Alkalis, Solvents, Chemicals, Corrosive Fluids
Leakage Standard	API 598
Face-to-Face Dimension	API 609 / ISO 5752 / EN 558
Inspection & Testing	API 598 / EN 12266-1
Applicable Industries	Chemical Processing, Pharmaceutical, Water Treatment, Petrochemical, Mining, Industrial Piping

Features of PTFE Lined Butterfly Valve

Excellent Corrosion ResistanceFull PTFE lining provides outstanding resistance against strong acids, alkalis, solvents, and other aggressive chemicals, extending valve service life in harsh environmen...

Excellent Corrosion Resistance

Full PTFE lining provides outstanding resistance against strong acids, alkalis, solvents, and other aggressive chemicals, extending valve service life in harsh environments.

Superior Chemical Compatibility

PTFE material offers wide chemical resistance and prevents contamination, making it ideal for chemical processing, pharmaceutical, and high-purity applications.

Low Friction & Smooth Operation

The low-friction PTFE liner reduces operating torque and ensures smooth opening and closing with minimal wear.

Reliable Bubble-Tight Shut-Off

Resilient PTFE seat design provides tight sealing performance with low leakage rates for dependable isolation service.

Protection Between Media and Valve Body

The PTFE liner creates a complete barrier between corrosive fluids and metal components, reducing corrosion damage and maintenance requirements.

Lightweight & Cost-Effective Design

Compared with fully corrosion-resistant alloy valves, PTFE lined butterfly valves provide a more economical solution while maintaining excellent corrosion protection.

Suitable for Aggressive Media Handling

Designed for challenging applications involving chemicals, acids, chlorine, solvents, and other corrosive fluids.

Easy Maintenance & Long Service Life

Simple butterfly valve structure combined with durable PTFE lining helps reduce downtime and lowers total operating costs.

SAVVY IMPORT AND EXPORT CO., LTD.



Room 1104, Poly Center Office Building, Lucheng District, Wenzhou City, Zhejiang Province, China
