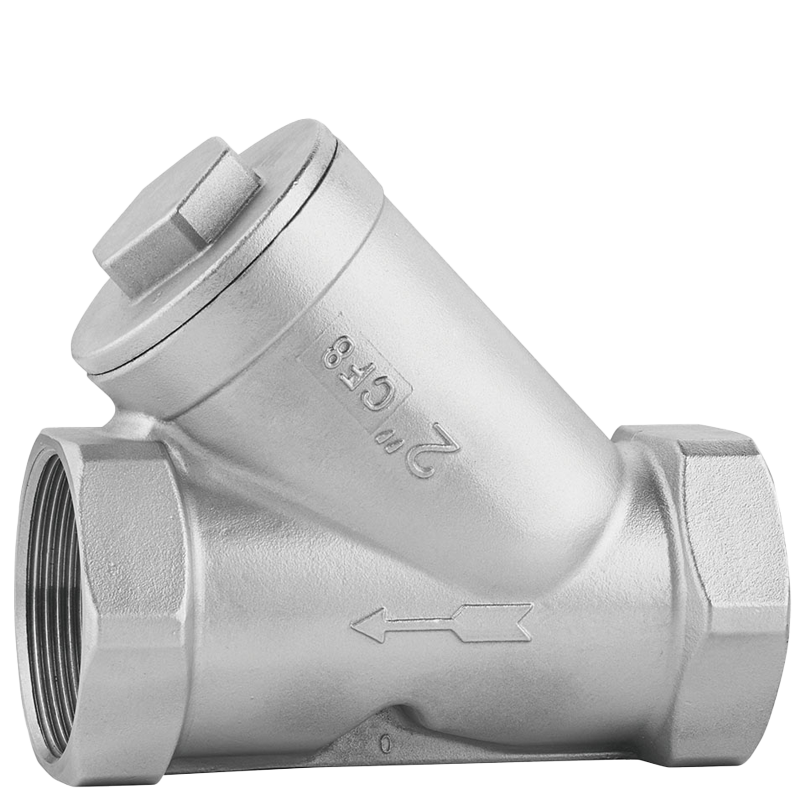

Thread Y Strainer

Name: Thread Y Strainer
Brand: SAVVY IMPORT AND EXPORT CO., LTD.

Thread Y Strainer is a compact and reliable pipeline filtration solution designed to remove dirt, debris, and solid particles from liquid and gas systems. Featuring threaded end connections, durable construction, and easy maintenance, it provides efficient protection for pumps, valves, and other critical equipment.

Specification of Thread Y Strainer

Parameter	Details
Size Range	1/4" – 4" (DN8 – DN100)
Pressure Rating	Class 150 – Class 600 / PN16 – PN100
Connection Type	Threaded End (NPT, BSP, BSPT)
Design Standard	ASME B16.34, API 598, MSS SP-124
Body Material	Carbon Steel, Stainless Steel, Alloy Steel, Brass/Bronze
Screen Material	Stainless Steel 304 / 316
Mesh / Perforation	20 – 200 Mesh (Customized Available)
Seal Material	PTFE, Graphite, NBR, EPDM, FKM
Temperature Range	-29°C to +200°C (Higher Temperature Available Based on Material)
End Connection Standard	ASME B1.20.1 (NPT), ISO 7-1 (BSPT)
Flow Direction	Straight Through with Y-Type Filtration Chamber
Drain Type	Threaded Drain Plug / Blow-Off Connection
Inspection & Testing	Shell Test, Seat Test According to API 598
Application Media	Water, Oil, Gas, Steam, Chemical Fluids
Applications	Oil & Gas, Petrochemical, Power Generation, Water Treatment, General Industrial Systems

Features of Thread Y Strainer

Compact Threaded Design for Limited Space InstallationThread Y Strainer features a compact Y-shaped body with threaded end connections, making it ideal for small-diameter pipelines and applications wh...

Compact Threaded Design for Limited Space Installation

Thread Y Strainer features a compact Y-shaped body with threaded end connections, making it ideal for small-diameter pipelines and applications where installation space is limited.

Quick Installation and Easy Maintenance

The threaded connection design allows fast installation and removal without requiring welding or flange alignment, reducing maintenance time and system downtime.

High-Efficiency Particle Filtration

Equipped with precision stainless steel filter screens, it effectively removes dirt, rust, scale, and solid contaminants to protect pumps, valves, instruments, and other downstream equipment.

Low Pressure Drop Performance

The optimized flow path and large filtration area minimize pressure loss while maintaining stable system flow efficiency.

Durable Corrosion-Resistant Construction

Available in stainless steel, carbon steel, and alloy materials, Thread Y Strainer provides excellent corrosion resistance and long service life in demanding industrial environments.

Reusable Filter Screen Design

The removable and washable screen reduces replacement costs and supports continuous operation with convenient cleaning procedures.

Reliable Threaded Sealing Performance

Precision-machined NPT, BSP, or BSPT threaded connections provide secure sealing and reduce the risk of leakage during operation.
