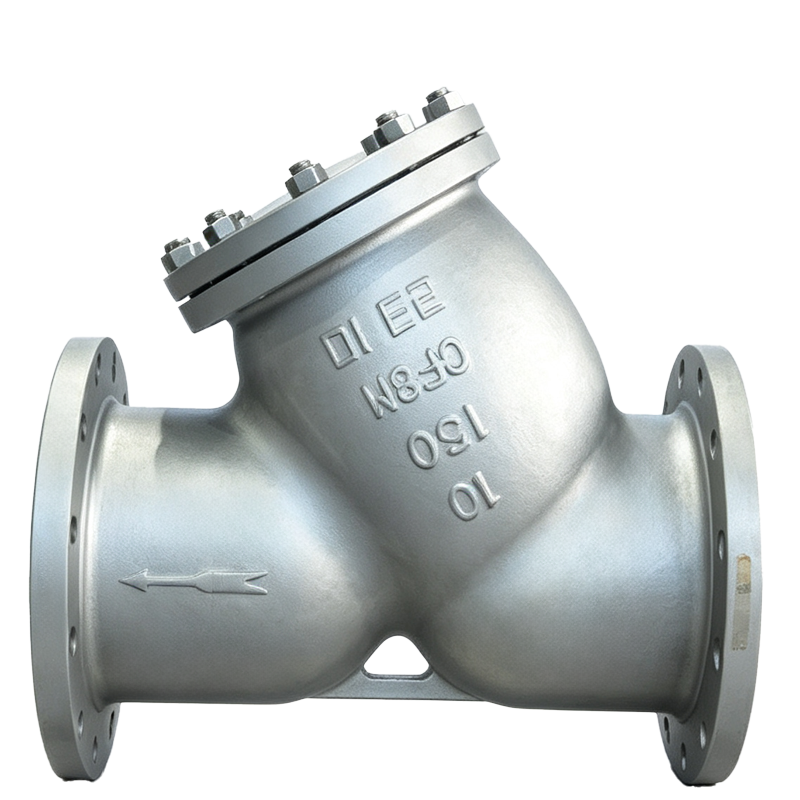

Y Strainer

Name: Y Strainer
Brand: SAVVY IMPORT AND EXPORT CO., LTD.

Y Strainer is a high-performance pipeline filtration device designed to remove solid particles, debris, and contaminants from liquid, gas, and steam systems. Manufactured with robust materials and precision machining, it provides reliable protection for pumps, valves, and downstream equipment. Y Strainers offer low pressure drop, easy maintenance, and long service life，suitable for oil & gas, chemical, power generation, water treatment, and industrial applications.

Specification of Y Strainer

Parameter	Details
Size Range	1/2" – 24" (DN15 – DN600)
Pressure Rating	CLASS 150 – CLASS 2500 / PN16 – PN420
End Connection	Flanged, Threaded, Socket Weld, Butt Weld
Design Standard	ASME B16.34, API 598, EN 12516
Face to Face	Standard ASME B16.10, DIN, EN Standards
Material Options	Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Bronze
Body Material	ASTM A216 WCB, A351 CF8/CF8M, A995 Duplex, A217 WC6/WC9
Screen Material	SS304, SS316, Duplex Stainless Steel
Screen Type	Perforated Plate / Mesh Screen
Filtration Rating	20 – 200 Mesh (Custom Available)
Pressure Test	API 598 / EN 12266
Temperature Range	-196°C to +400°C (Depending on Material Selection)
Medium	Water, Oil, Gas, Steam, Chemical Fluids
Design Feature	Bolted Cover, Removable Screen, Low Pressure Drop Design
Application	Oil & Gas, Petrochemical, Power Plant, Water Treatment, Industrial Piping Systems
Manufacturing Standard	API, ASME, DIN, EN, ISO Standards

Features of Y Strainer

Compact Y-Shaped Design for Space-Saving InstallationThe Y-shaped body configuration provides a compact structure with minimal installation space requirements, making it ideal for pipelines with limit...

Compact Y-Shaped Design for Space-Saving Installation

The Y-shaped body configuration provides a compact structure with minimal installation space requirements, making it ideal for pipelines with limited layout space.

High-Efficiency Filtration Performance

Equipped with precision perforated screens or mesh filters, Y Strainers effectively remove solid particles, rust, scale, and debris to protect pumps, valves, meters, and other critical equipment.

Low Pressure Drop Design

Optimized internal flow passages reduce turbulence and pressure loss, ensuring efficient system operation and maintaining stable flow performance.

Wide Installation Flexibility

Suitable for horizontal, vertical, or inclined pipeline installation, especially effective for steam, gas, liquid, and process piping systems.

Easy Maintenance with Removable Screen Design

The bolted cover and removable filter element allow quick inspection, cleaning, and replacement without removing the entire strainer from the pipeline.

Extended Service Life of Downstream Equipment

By preventing contaminants from entering pumps, valves, and instrumentation, Y Strainers reduce equipment wear, maintenance frequency, and operational downtime.

Suitable for Steam and High-Temperature Applications

Specialized designs support steam, thermal oil, and high-temperature process systems where reliable filtration is required.
